Entities
Each zone you configure will be added as a sensor entity to Home Assistant. The sensor will be named as follows: sensor.smart_irrigation_[zone_name]. So if you have a zone called 'lawn' then the sensor would be named sensor.smart_irrigation_lawn.
Each entity will have the following attributes:
| Attribute | Description |
|---|---|
id |
internal identification |
size |
the total area the irrigation system reaches in m2 or sq ft. |
throughput |
total amount of water that flows through the irrigation system in liters or gallon per minute. |
state |
disabled, manual, automatic |
bucket |
the bucket size in mm or inch |
unit_of_measurement |
seconds |
device_class |
duration |
icon |
default: mdi:sprinkler |
friendly_name |
Name of your zone. |

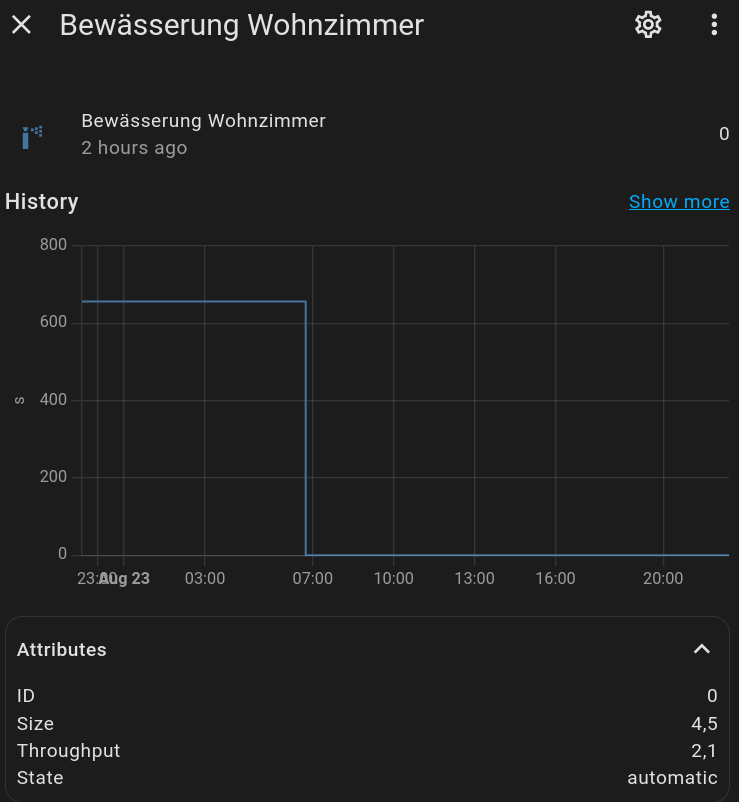

Sample screenshot:
If you want to expose these attributes as separate sensors, you can add template sensors using a template like the following example for bucket:
``
(Since the per-zone device was added, you can also just use the dedicated entities below instead of template sensors.)
Per-zone device and entities
Each zone is also grouped as a device in Home Assistant (named after the zone), attached to the single Smart Irrigation hub device. Alongside the duration sensor above, the device exposes dedicated entities, so a zone reads as a set of entities rather than one attribute bag:
| Entity | Type | Description |
|---|---|---|
Duration (sensor.smart_irrigation_[zone]) |
sensor | Calculated watering duration (seconds). This is the original entity: its entity_id, recorded history and attributes are preserved. |
| Bucket | sensor | Current soil water balance (mm/inch); negative means deficit. |
| Applied ET | sensor | ET applied to the bucket at the last calculation (daily et0 x elapsed interval + rain). |
| Daily ET deficiency | sensor | Raw daily reference ET (et0), independent of the interval and of rain. |
| Current drainage | sensor | Water drained as runoff at the last calculation. |
| Last irrigation | sensor (timestamp) | When the zone was last credited for a run. |
| Water used | sensor (water, total) | Cumulative water delivered to the zone (litres). |
| Multiplier | number | Editable per-zone multiplier, written to the store and used by the next calculation. |
| Irrigation needed | binary_sensor | On when the bucket is in deficit. |
| Watering now | binary_sensor | On while the zone's linked valve/switch is open. |
| Problem | binary_sensor | On when a valve problem was reported (e.g. it never opened); clears on the next successful run. |
| Calculate | button | Recalculate this zone now. |
| Reset bucket | button | Set the bucket to 0 ("I just watered, start from zero"). |
| Reset usage | button | Zero the cumulative water-used counter. |
| Irrigate now | button | Run this zone's valve for its calculated duration (only shown with direct valve control). The run credits the bucket, so the delivered water is accounted for and the next calculation irrigates less. |
The Smart Irrigation hub device also carries global action buttons: calculate all zones, refresh weather, and (with direct valve control) irrigate all zones.
These entities are additive: nothing was removed. The duration sensor keeps its entity_id, recorded history and attributes, so existing dashboards, automations and templates keep working. A one-time registry migration moves the duration sensor's internal unique_id to a stable per-zone scheme; the entity_id and history carry over.
The per-zone device/entity layout is inspired by JustChr's Smart Irrigation fork (MIT).
